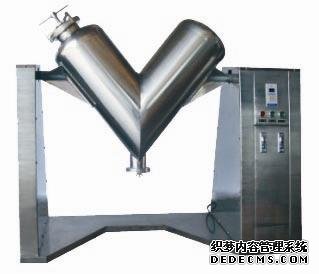

V-type High-efficient Mixing Machine
V-type High-efficient Mixing Machine
|
Mixer
|
Application
This machine has the following distinguishing features no blind eagle in the cylinders number accumulation of materials, high speed and short mixing time. With the body made of stainless steel and both inner and outer walls polished.
The cylinders have elegant appearance. The charging of materials can be made either by manual operation or through vacuum suction. For discharging rotating valves and rapid swivel heads are adopted. This mixer is applicable for mixing powder or granular materials in pharmaceutical and other industries. It consists of two V-type cylinders of different altitudes, and throng mechanical transmission the materials in these cylinders area made to move back and forth and turn over again and again, thereby achieving the goal of uniform mixing.
|
Technical parameter:
|
Specification
|
0.05M 3
|
0.15M 3
|
0.3M 3
|
0.5M 3
|
1M 3
|
1.5M 3
|
3M 3
|
|
Capacity (kw)
|
12.5
|
37.5
|
75
|
125
|
250
|
375
|
750
|
|
Power (kw)
|
0.37
|
0.8
|
1.5
|
1.5
|
2.2
|
3
|
4
|
|
Overall Size
mm
|
1150*800*1200
|
1600*1100*1700
|
2100*1600*2400
|
2200*2000*2700
|
3100*2300*3100
|
3300*2600*3550
|
4200*2700*3600
|
|
Net Weight
|
200kg
|
250 kg
|
480 kg
|
500 kg
|
700 kg
|
900 kg
|
1100 kg
|
|
|
