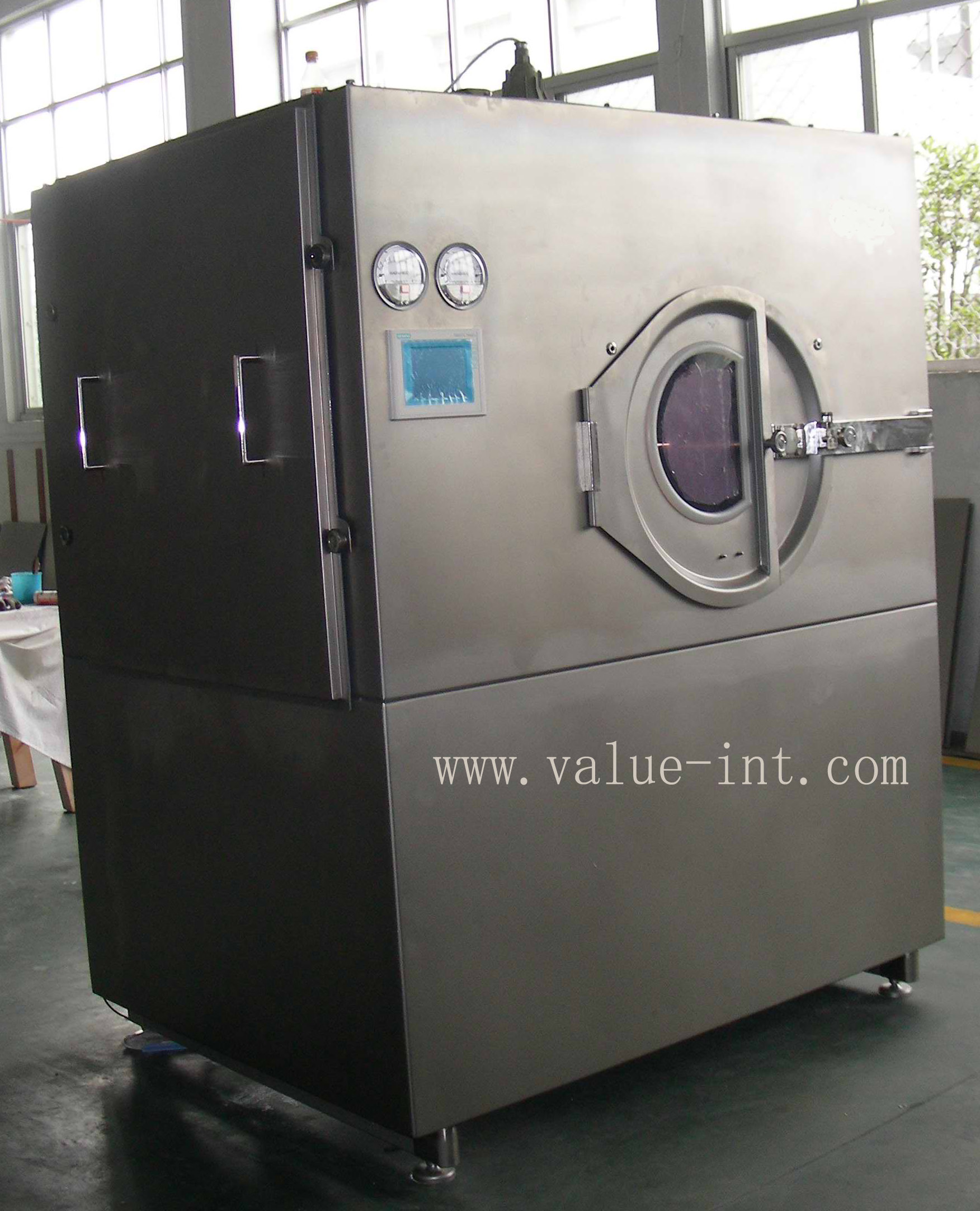

BG series high-efficiency intelligent coating machine
coating machine
|
It can be widely used for various tablets, pills and sweets with organic film water-soluble film and sugar film etc.
in such fields as pharmaceutical,foodstuff and biological products etc, and it has following characteristics such
as good appearance in design, high efficiency, low energy consumption and in accordance with GMP.
|
Technical parameter
|
|
|
|
|
|
Specification
|
BG-10
|
BG-75
|
BG-150
|
BG-350
|
|
Max. load(kg)
|
10
|
75
|
150
|
350
|
|
Mainframe power(kw)
|
0.55
|
1.1
|
2.2
|
3
|
|
Roller rotate speed(rpm)
|
4~30
|
3~20
|
2~16
|
2~12
|
|
Mainframe wreight(kg)
|
350
|
700
|
900
|
1200
|
|
Mainframe form size(L*W*H)(mm)
|
1100*750*1540
|
1350*1010*1630
|
1570*1260*1950
|
2800*2000*2200
|
|
Hot air machine power(kw)
|
0.25
|
0.75
|
1.1
|
1.5
|
|
hot air machine form size(mm)(L*W*H)
|
620*750*1540
|
1100*900*2040
|
1100*1150*2100
|
1200*1200*2200
|
|
Hot air machine weitht(kg)
|
150
|
200
|
500
|
800
|
|
Clean dust air outlet mahine power(kw)
|
1.5
|
3
|
5.5
|
5.5
|
|
clean dust air outlet form size(mm)(L*W*H)
|
780*800*1950
|
890*800*1950
|
890*1000*2080
|
890*1000*2200
|
|
Clean dust air outlet mahine weight(kg)
|
200
|
250
|
500
|
800
|
|
Heat preservation beater
|
1.5
|
2.2
|
2.7
|
3
|
